TRIC F A-Frame 30

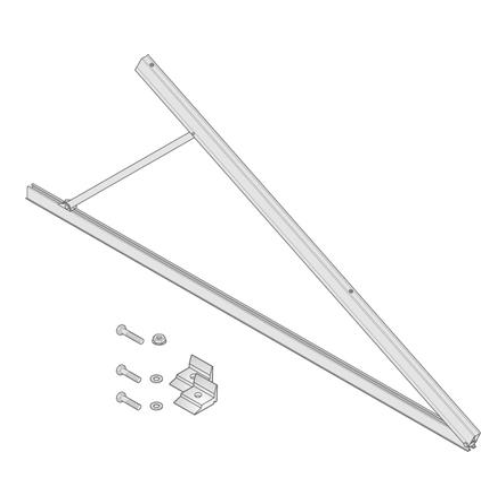

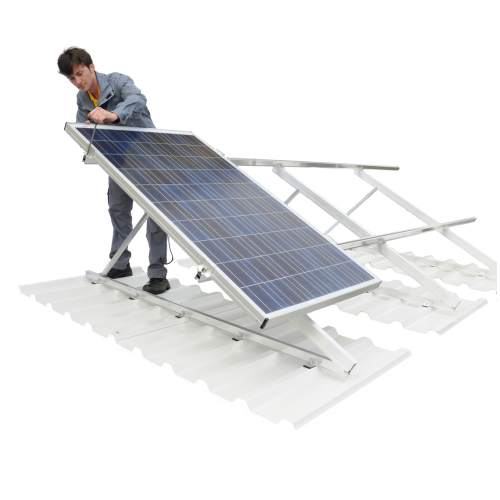

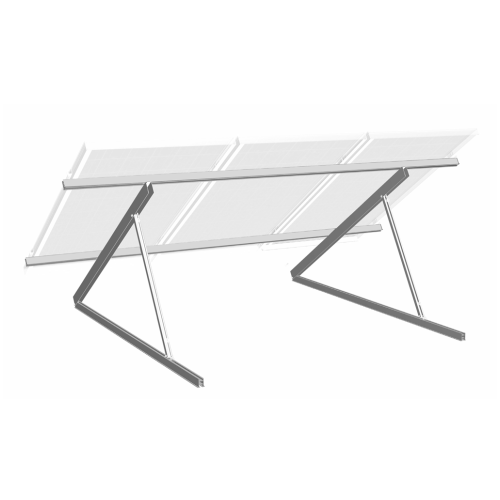

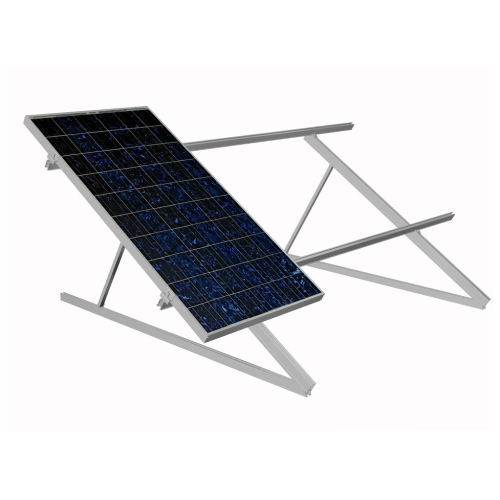

TRIC F 30 Portrait A-Frame (1 triangle including fittings) for solar panel mounting.

Create a trade account for trade pricing

SKU: 3TF30-21905002 | Category:

The TRIC F racking system combines top quality materials, intelligent detail solutions and a well thought out overall concept. Special attention was paid in its development in various racking situations. Flat or sloping roofs or a challenging variation like diagonal installation on sloping roofs are not an issue for these versatile A-Frames.

TRIC A-frames are designed to be permanently fixed, we have a range of solutions for fixing a-frames to a range of substructures. Please discuss you needs with one of the team. A-Frames are not designed to be ballasted.

TRIC A-Frames come in 2 main variations of varying pitches;

Landscape mounting;

Portrait mounting;

  • TRIC F 15 pitch variation 15-22 degrees
  • TRIC F 30 pitch variation 22-38 degrees
  • TRIC F 45 pitch variation 38-60 degrees


These A-frames require TRIC HDC rails and the TRIC Clip to complete the mounting solution. Need a bespoke design and quotation? Fill out our Request A Design form, and one of our team will get in touch.

Weight 3.61 kg
Dimensions 199 × 5 × 7.8 cm


Mounting Type
