TRIC TR Fix Bracket

£5.34

TRIC TR Fix DeLuxe Roof Bracket set. Trapezoidal (sheet metal) roof mounting set for solar PV modules.

Create a trade account for trade pricing

1285 in stock

SKU: 3TRFIX-DELUXE | Category:

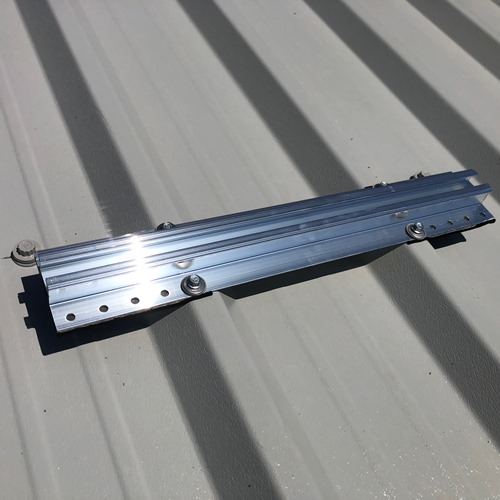

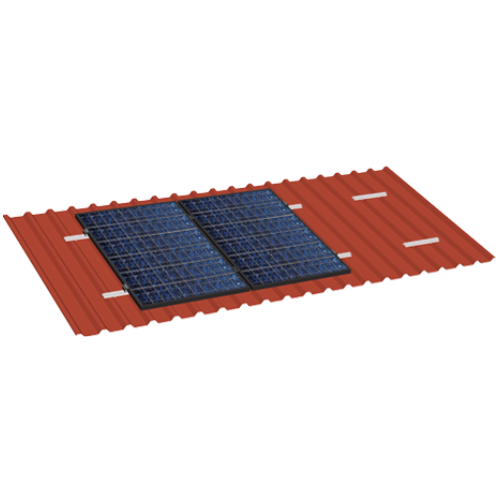

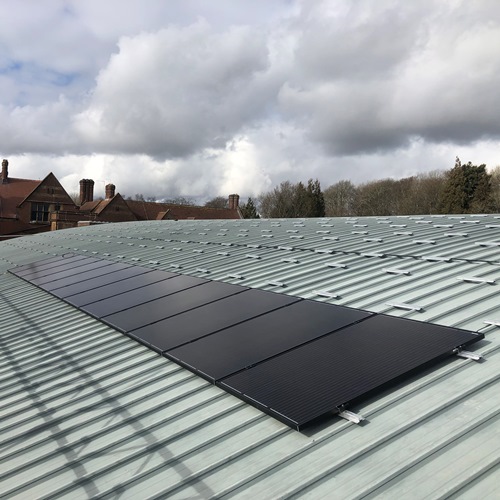

Rapid solar PV mounting for ?shed? or trapezoidal sheet metal roofs in combination with the TRIC clip. Options for short rail segments, or continuous rails, with sheet metal screws, or rivets make this a quick and versatile mounting solution.

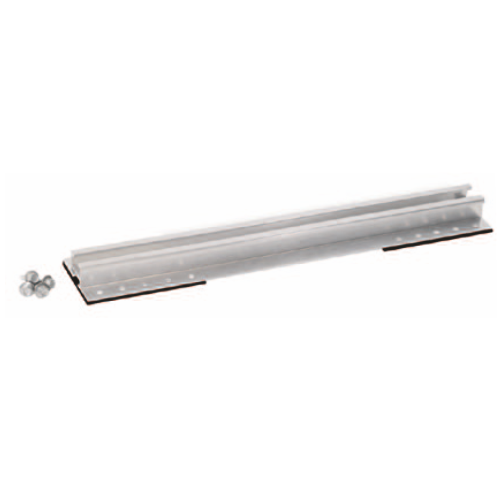

The rail comes pre-cut in 395mm lengths, with pre-drilled holes for fast and easy installation. TR Fix De-Luxe comes with neoprene pads pre-stuck as standard, these are larger pads than the original TR Fix pads. As the TR Fix De-Luxe is a significant upgrade this will now be our standard solution for sheet metal roofs.

The modules are held in place using the TRIC Clip fastening system which is compatible with the TR Fix rails, and simply click into place and then tightened to secure the solar module.

TR Fix is MCS012 approved for pitched roof installations;?IK0193 Wagner Renewables.

MCS number; MCS IK0193.

Each set contains 1 rail with pre-stuck neoprene pads and 4 screws. Need a bespoke design and quotation? Fill out our Request A Design form, and one of our team will get in touch.

Weight 0.242 kg
Dimensions 39.5 × 6.5 × 2.4 cm
Brand

TRIC

Mounting Type

On Roof (Pitched)
